OVER 7500 LBS OF COMPACTION FOR MEDIUM SIZE APPLICATIONS

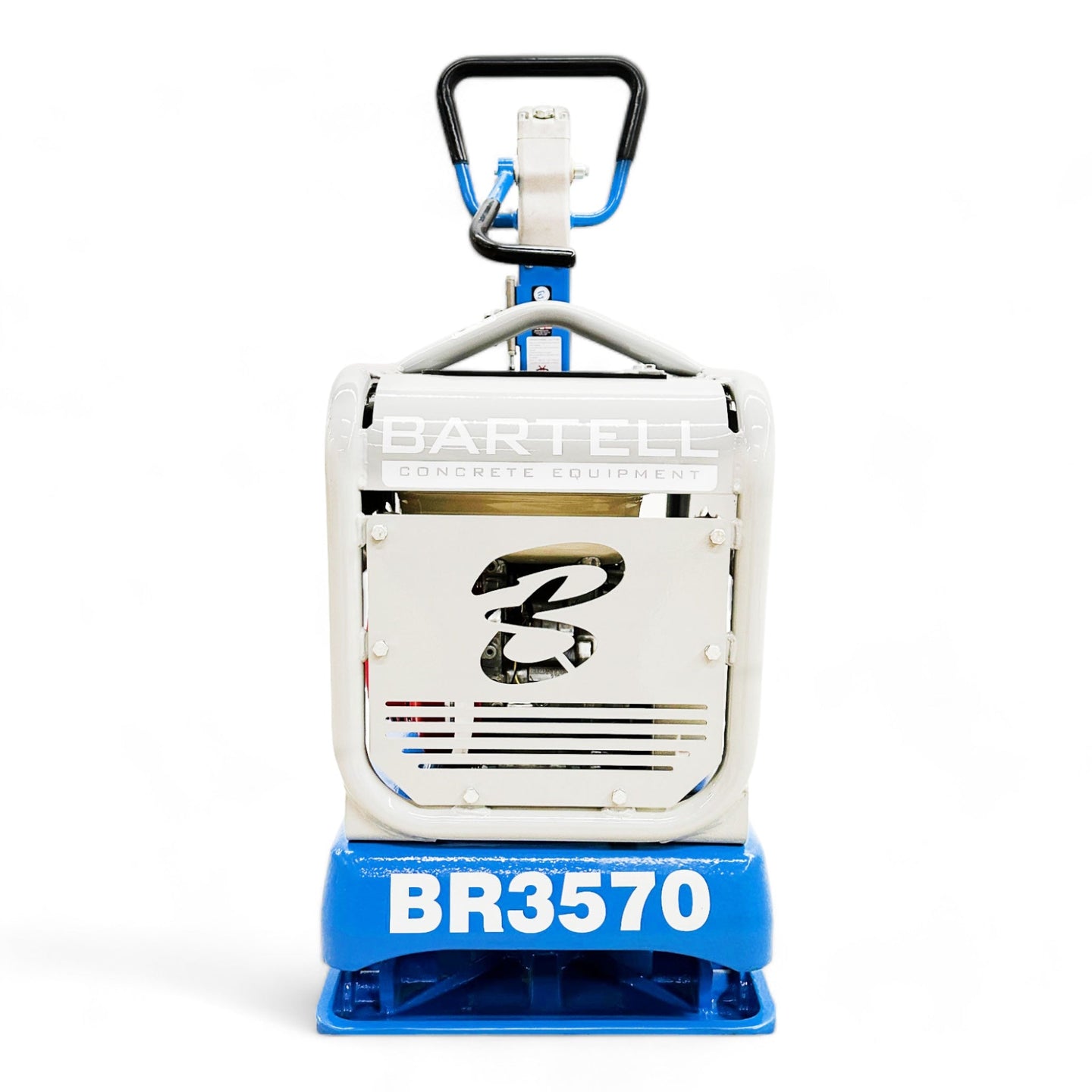

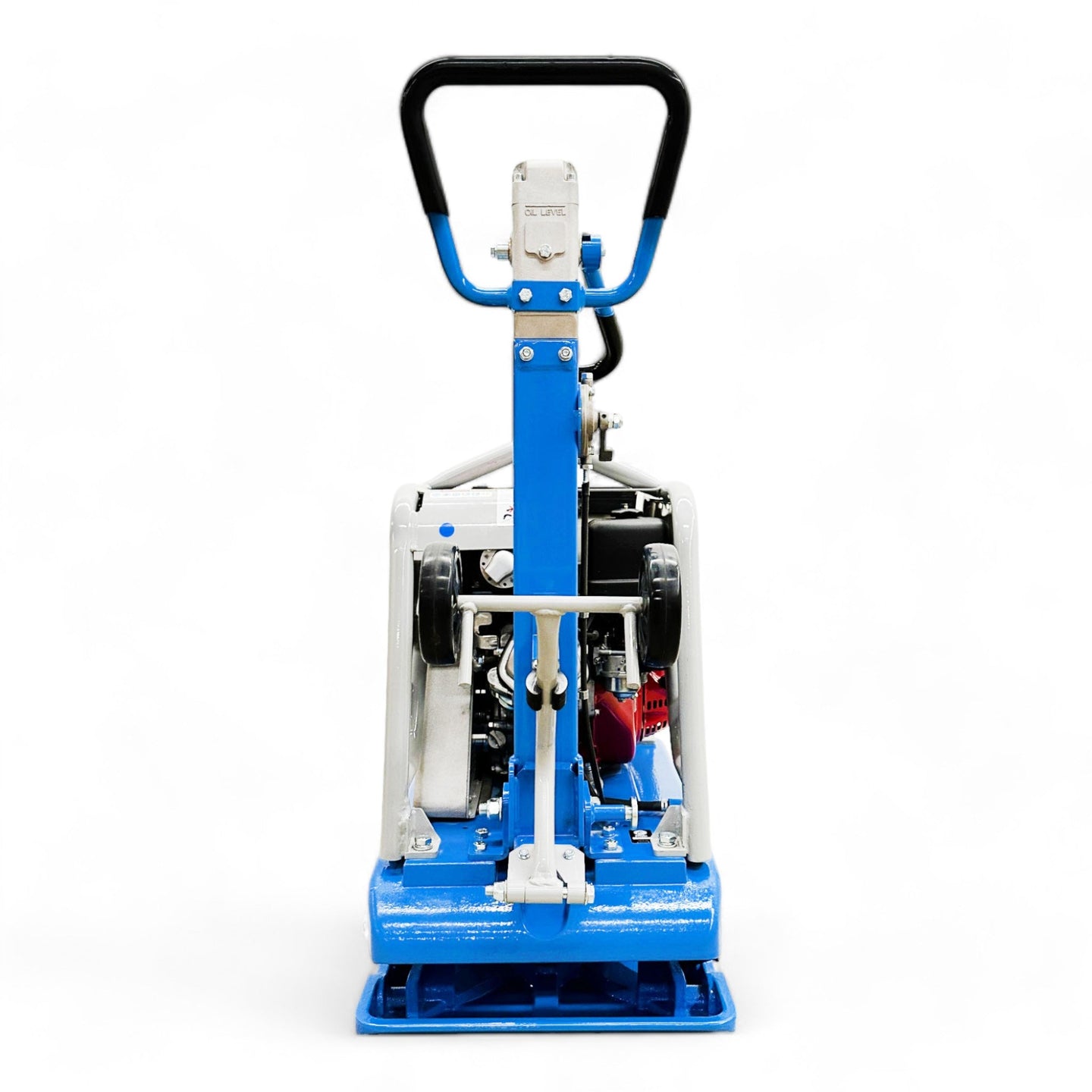

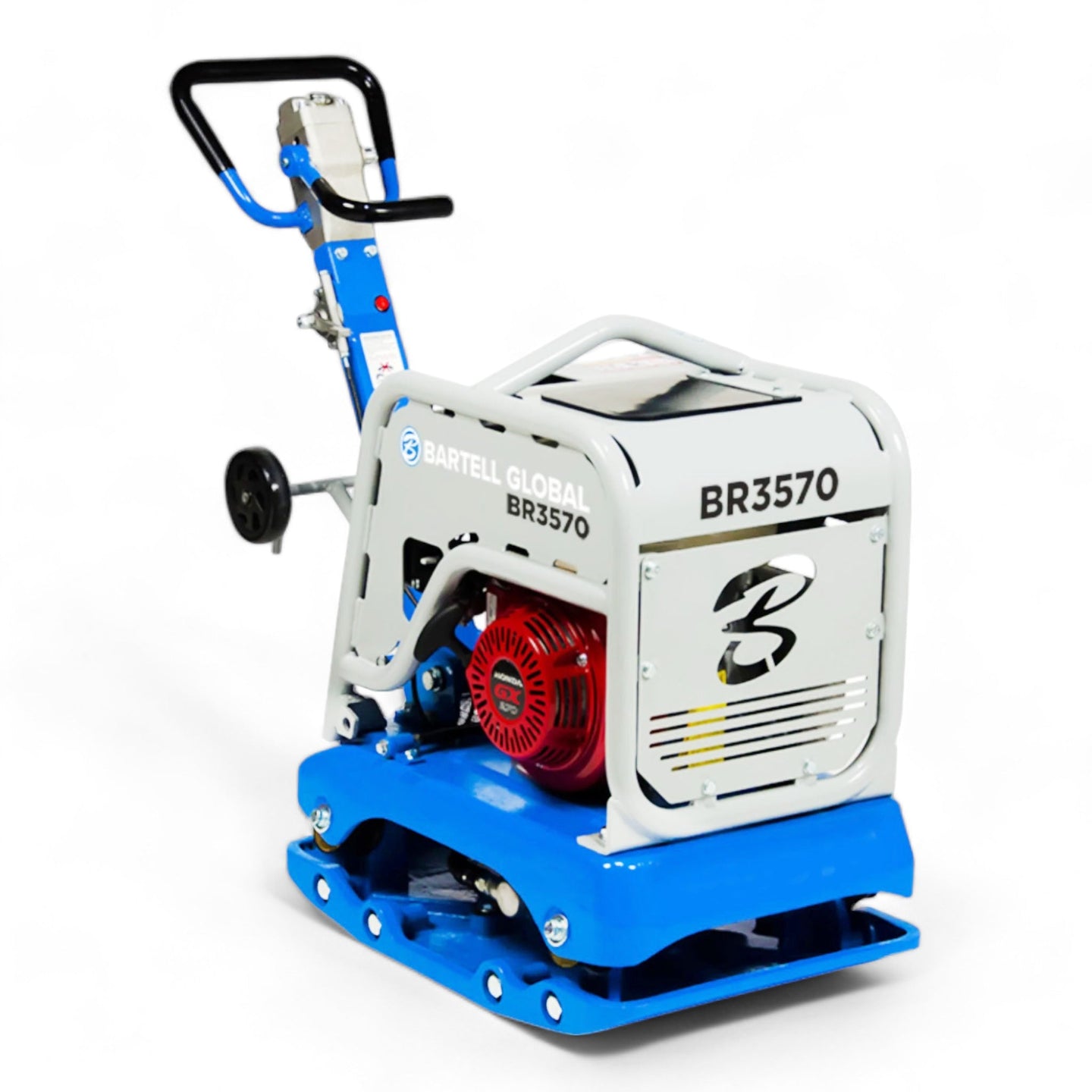

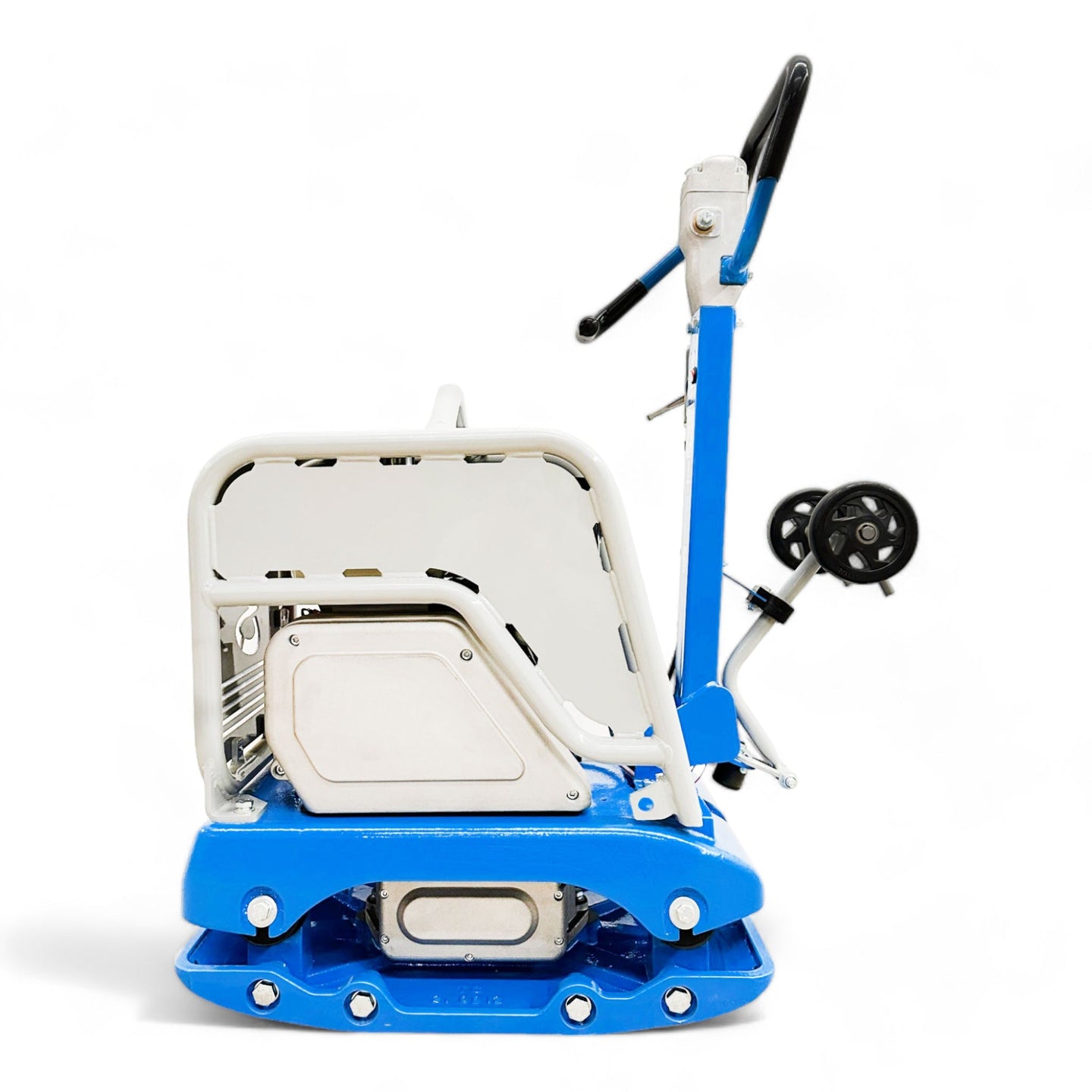

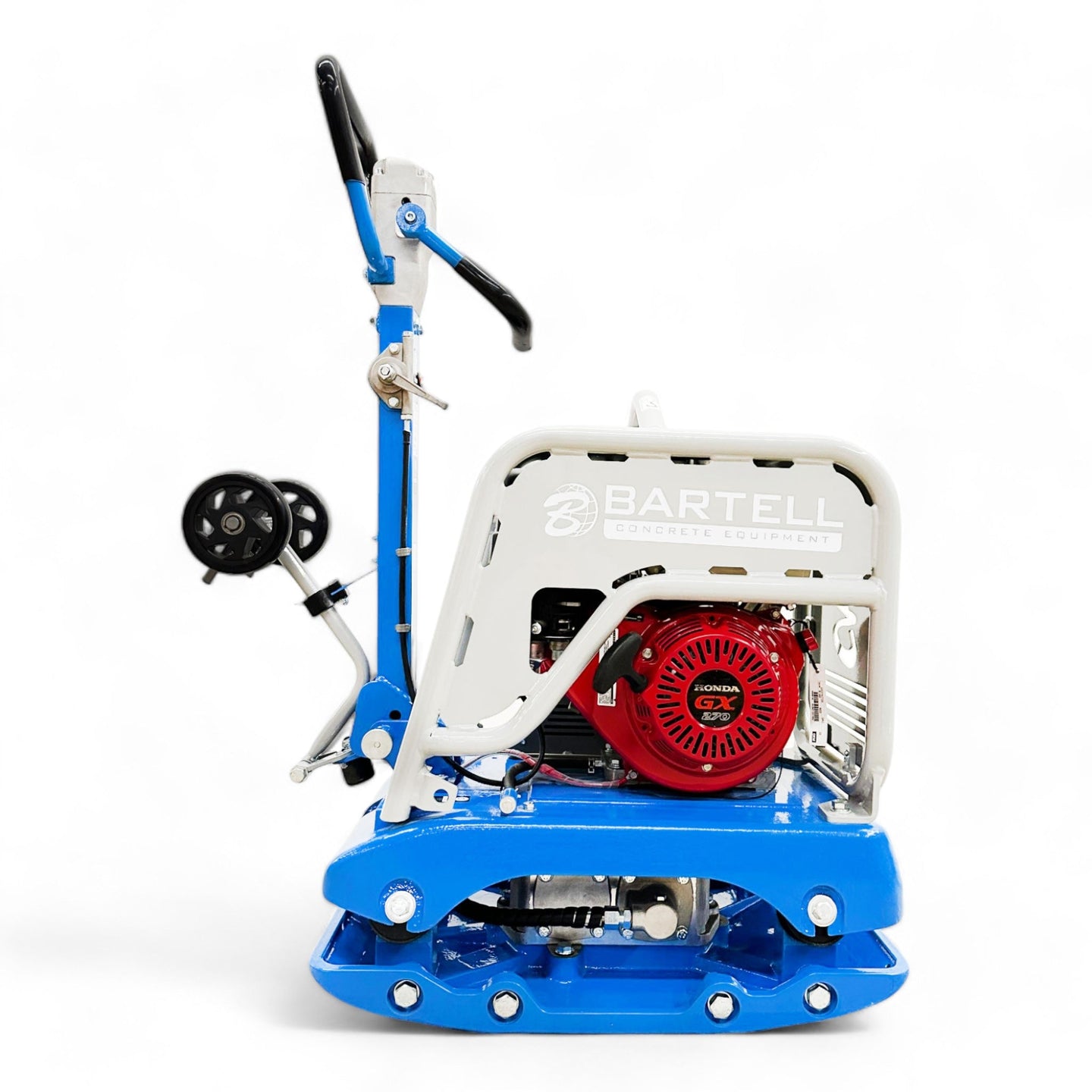

The Bartell BR3570 Compactor is built for medium compaction jobs due to its compaction force abilities and plate size. This plate compactor will help you accomplish larger footprints quickly and effectively.

Features

  • Hydraulic reversing mechanism with flexible maneuverability allows the machine for forward, backward, and spot-on compaction
  • Cast aluminum throttle lever for a more professional, stronger, and durable for tamping
  • New closed style frame for increased engine and guide hook protection
  • Cast aluminum belt cover for increased clutch and engine longevity
  • Ductile iron bases for increased strength and durability
  • Optional extension plates and urethane mat options available

Specs

Engine Type Honda GX270
Power Output 8.5hp (6.3kW)
Compaction Force 7871 lbf, 35 kN, 3570 kgf
Max Travel Speed 52'/min (16m/min)
Length 53" (134cm)
Width 18" (45cm)
Height 38" (96cm)
Weight 449 lbs (204kg)
Plate Size 18" x 28" (45cm x 70cm)
