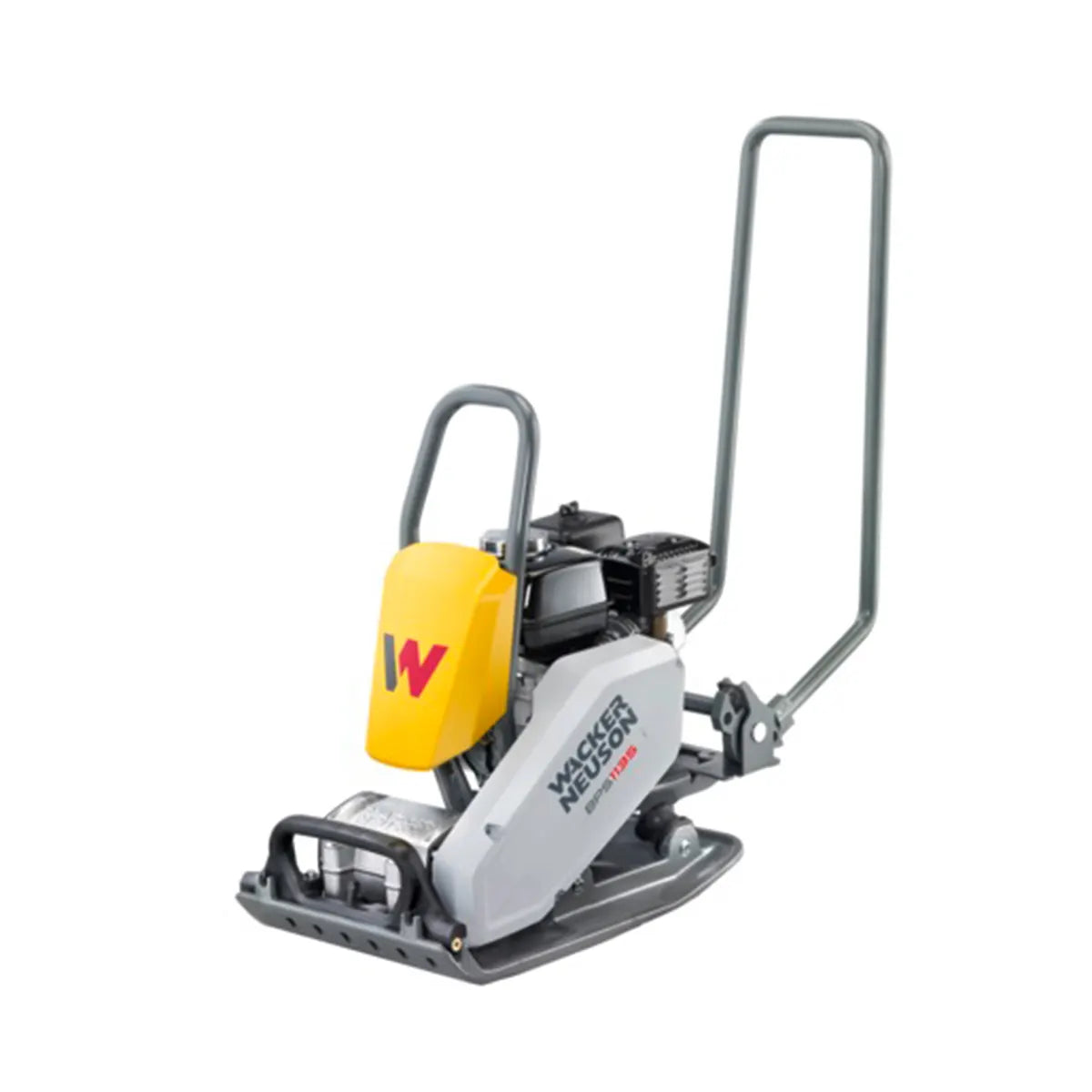

Wacker BPS1135A Plate Compactor

Features

  • Single-direction vibratory plate compaction
  • For soil and asphalt compaction
  • Designed for compaction in confined areas of granular soil in narrow trenches
  • Ideal for curbs, gutters, around tanks, forms, columns, footings, guard railings, drainage ditches, gas and sewer works and building construction
  • Special contoured running surfaces and rounded edges provide maximum performance and maneuverability
  • Low hand-arm vibration of less than 5 m/s², which enables long, comfortable working conditions
  • A newly designed “low-vibration” guide handle dramatically improves operator comfort and minimizes operator fatigue
  • Heavy-duty shock mounts on the engine console dampen vibrations, thereby reducing wear on the components
  • The BPS series is equipped with a highly sturdy fan belt and has bearings with lifetime lubrication, making it maintenance-free
  • 3.5 HP Honda gas engine
  • A large lifting eye and wide, ergonomically designed carrying handles make moving and loading the machine both easy and comfortable
  • Optional wheel set and paving pad offer additional applications (sold separately)


Specifications

Wacker BPS1135A Plate Compactor Specifications
Length x width x height 36.6 L x 13.8 W x 26.1 H inches
Ground Clearance 26.1 in
Size of base plate (L x W) 20.5 x 14 in
Operating weight 134.5 lbs | 61 kg
Compaction rate 5,900 ft2/h
Forward speed (soil) 85 ft/min
Gradeability up to 36.4%
Vibration frequency 98 Hz | 5,880 vpm
Max. centrifugal force 2,473 lb
Engine Type Honda Gas
Air-cooled, 4-stroke
Sound Level LpA 93 dB(A)
Area capacity 5.877,1 ft2/h
Fuel tank capacity 0.7 US Gal
